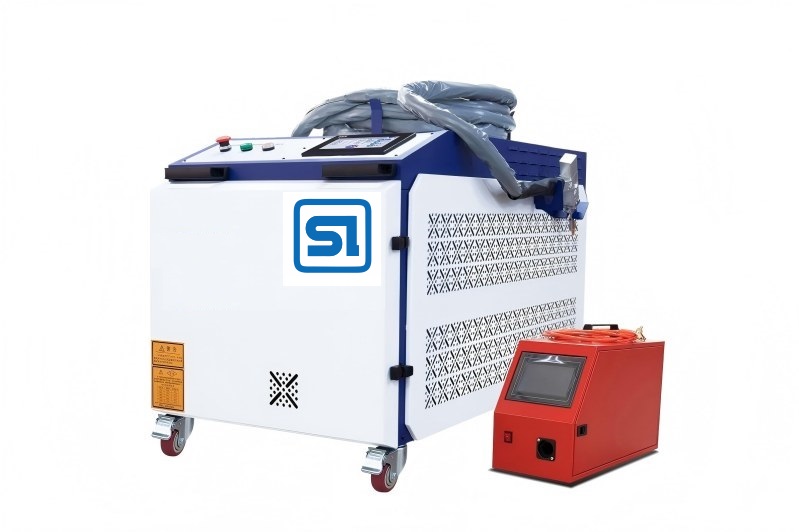

Hand-Held Laser Welding Machine

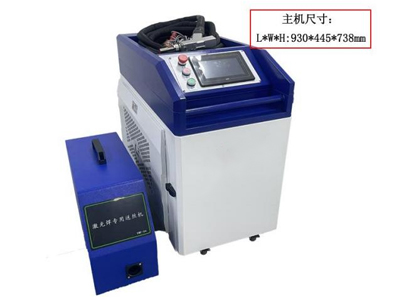

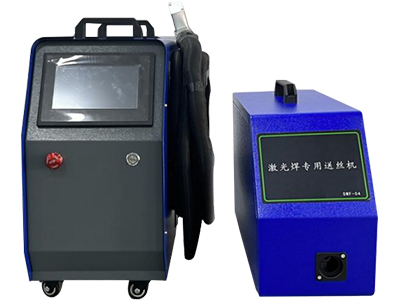

Construction and characteristics of air-cooled laser hand-held welding unit 1. The air-cooled laser hand-held welding machine is composed of three parts:1st The laser hand-held welding system and the welding torch. 2nd  Air-cooled lasers. 3rd Laser welding wire feeder. 2. The air-cooled laser welding machine is small, easy to use, convenient to handle, better outdoor work, and energy-saving than the traditional water-cooled laser welding machine. 3. The air-cooled laser welding machine is used quickly in winter without worrying about freezing the laser due to the low temperature, and there is no need to worry about the laser and the water dew of the welding torch affecting the service life of the equipment in summer. 4. Air-cooled laser core small energy in the middle, the same power welding penetrantion. 5. The air-cooled hand-held welding machine has low failure probability and convenient maintenance.

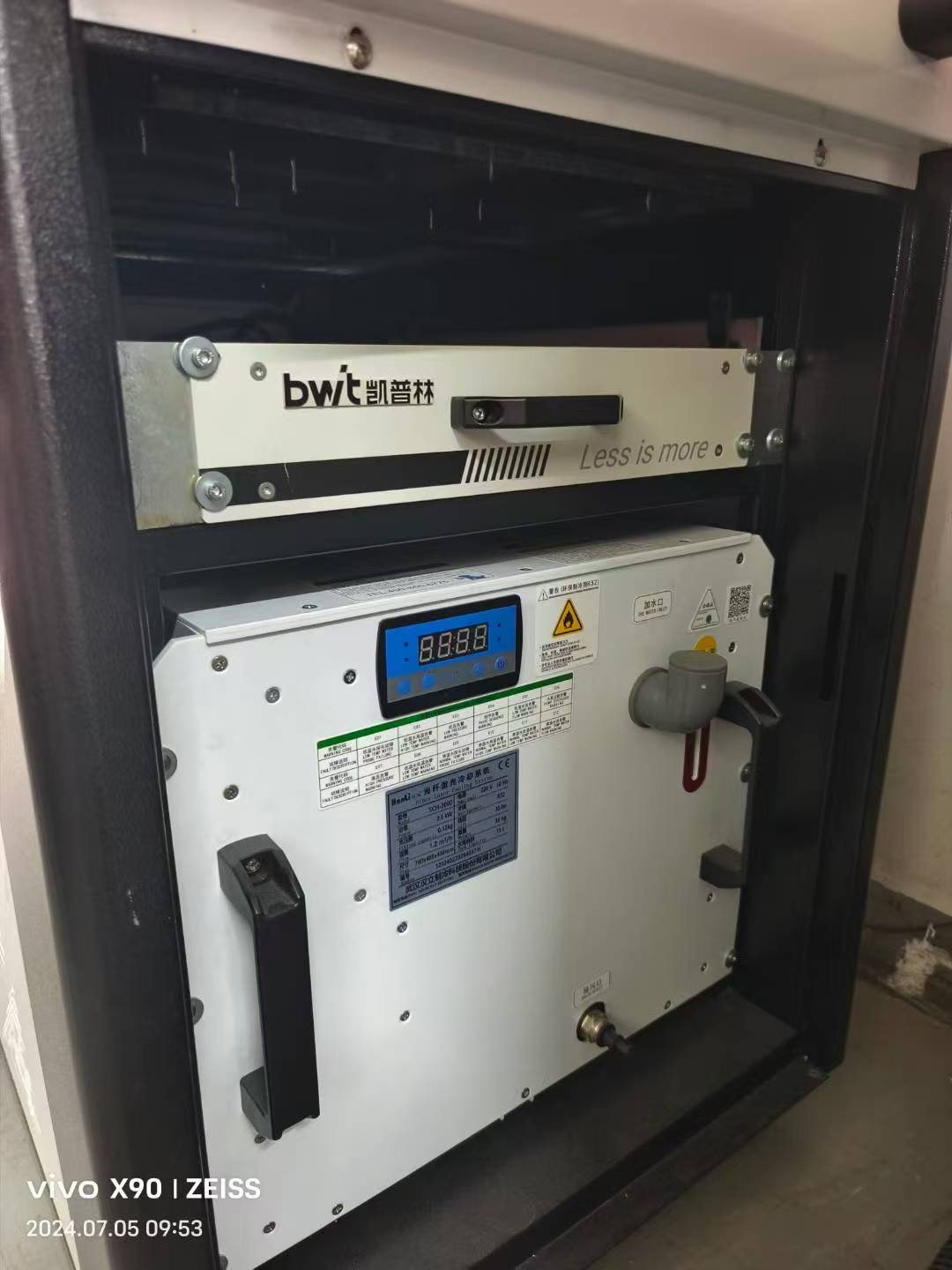

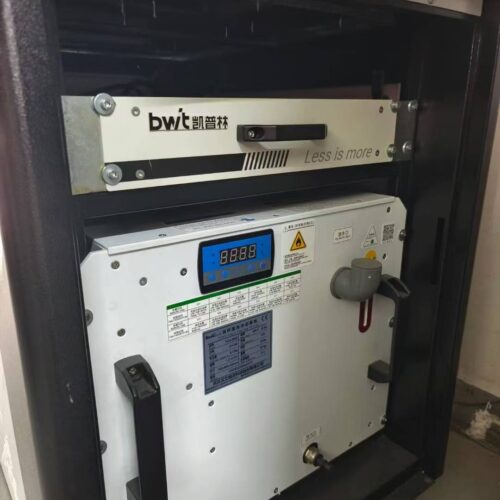

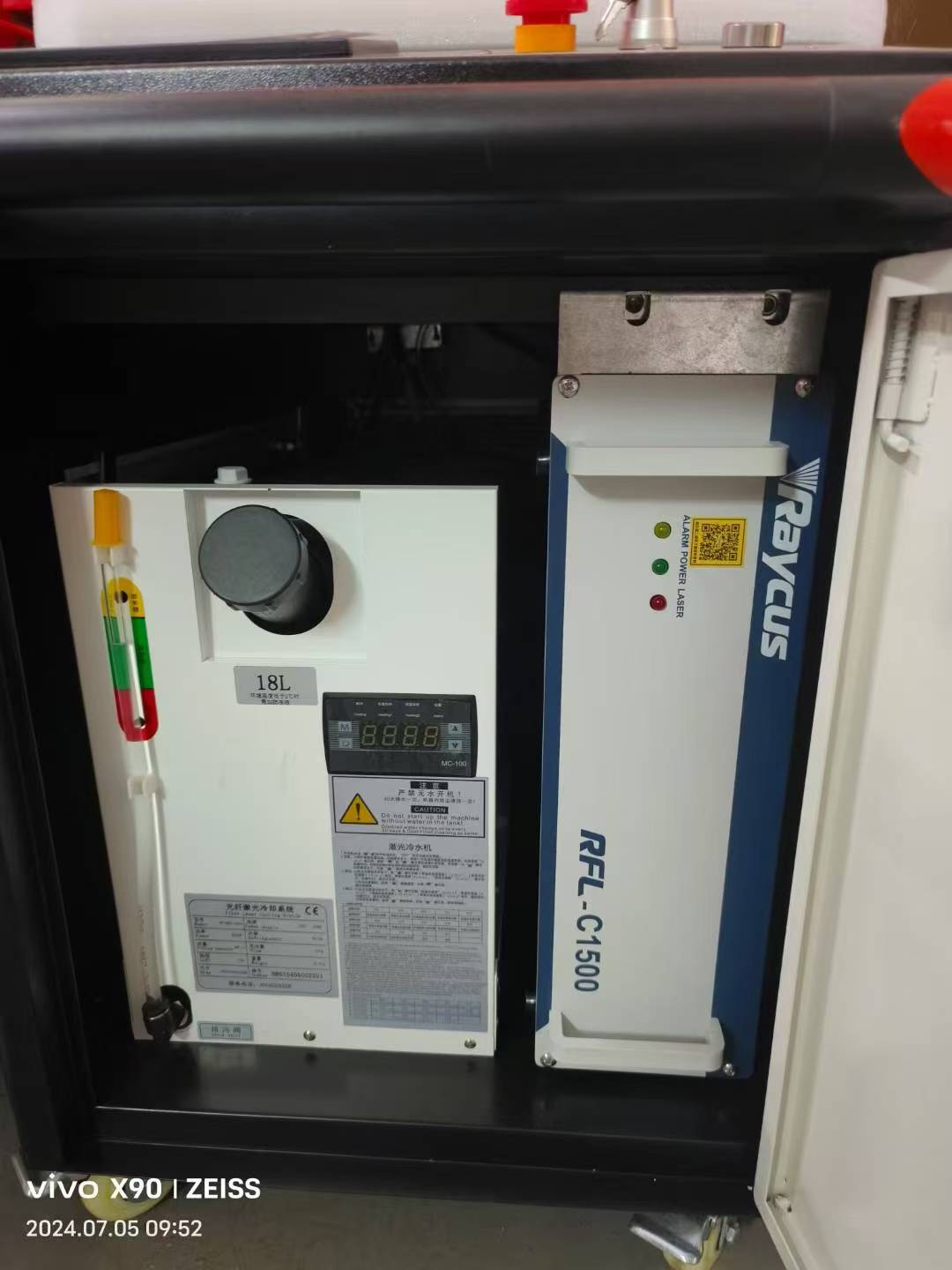

Construction and characteristics of water-cooled laser hand-held welding unit 1. The water-cooled laser hand-held welding machine is composed of 4 parts; 1st, laser hand-held welding system and welding gun head. 2nd, water-cooled lasers. 3rd, laser welding professional wire feeder, 4th, laser special water tank. 2. The water-cooled laser hand-held welding machine has a large volume and good heat dissipation, and can work stably for a long time in high temperature weather. 3. Water cooled laser handheld welding machine laser power output is stable, laser power can be enlarged handheld welding machine air cooled maximum 2000 watts, water cooled maximum 3000 watts. 4. Water cooled laser handheld welding machine laser cost is low.

Product advantage Welding industrial revolution

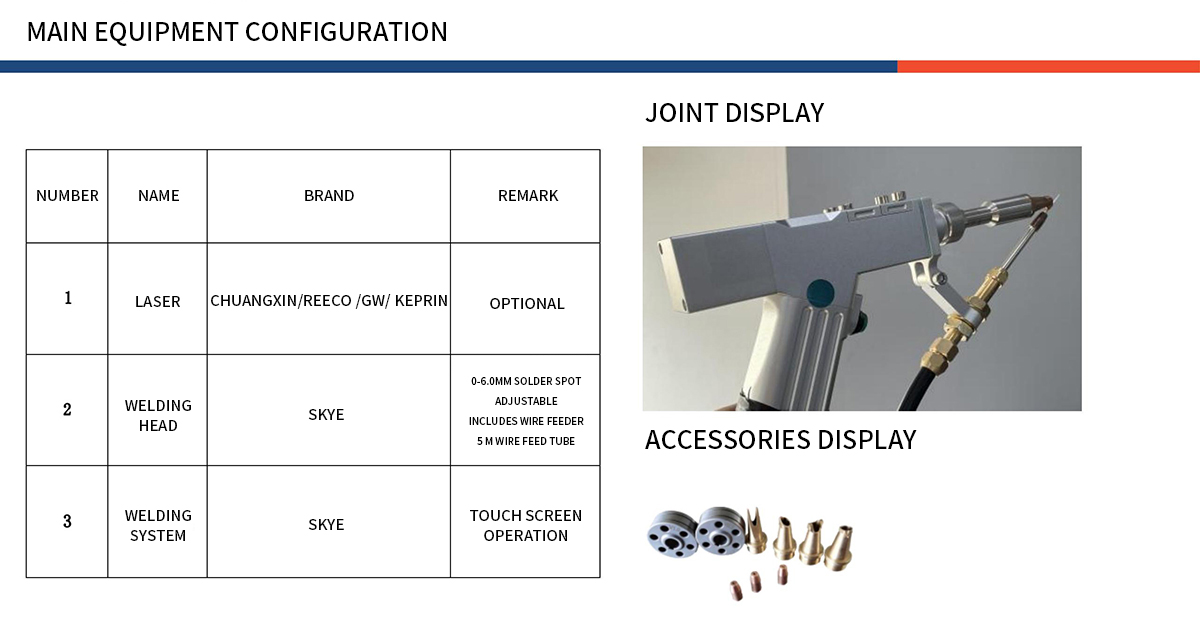

Equipment adopts the latest generation of air-cooled fiber laser, hand-held welding head, equipped with automatic wire feeding mechanism;
High welding efficiency – 5-6 times that of TIG welding
Simple operation – no need for professional welding technology, welding on gun lifting, good welding surface, no or little grinding, reduce post-processing time
Cost saving -1 machine can replace 2-3 people
Solder spot adjustable – 0.3-6mm
Applicable materials – Can weld carbon steel, stainless steel, galvanized sheet, sheet iron, aluminum alloy and other metals, but also can assist cutting
High speed and high efficiency – single-side welding, double-sided forming, support fillet welding, vertical welding, patch welding, overlap welding and other welding methods, the speed is 3-10 times that of traditional welding
Widely used – cabinet deodorization, stair elevators, shelves, ovens, stainless steel door and window guardrail, distribution box, stainless steel home and other industries
