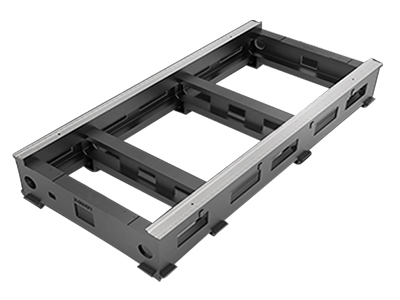

Thecutting bed is welded structure, adopts high temperature heat treatment of 600 degrees C, annealing to eliminate the internal stress after roughing, after the secondary vibration aging treatment. Better solve the stress caused by welding and processing, thus greatly improving the stability of the machine. Good shock absorption, small stress, The accuracy remains unchanged for a long time, and the stability is high |

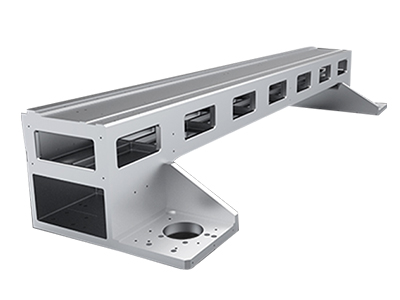

| Cast aluminum beam;
1. The use of aviation 6005A material drawn aluminum beam, light weight, good dynamic performance. |
 |
 |
Auto Focus – Reduce human intervention. Light weight, compact structure, reduce machine mechanical requirements. Withstand power up to 10,000 watts, thick plate cutting more handy. The collimating mirror and focusing mirror have cooling structure, while increasing the nozzle cooling air flow, effectively protecting the nozzle and ceramic body, extending the continuous working time. The focusing module is controlled by servo motor, the focusing precision can reach 20UM, and the maximum focusing speed is 10m/min. Monitor the temperature and other working status of each lens, and display the working status through the cutting head indicator. Multiple protective lenses, protect the inner cavity lens, patent inner cavity dust technology, effectively improve the life of the lens. It can be adapted to the mainstream height adjustment system in the market, and the height adjustment module can choose integrated follow-up sensor and amplifier external sensor. |

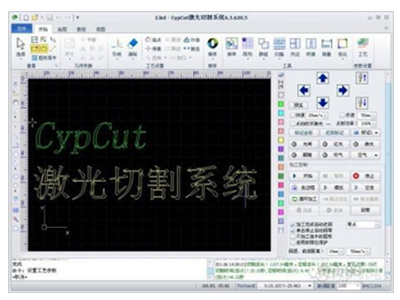

| The new control system is a full-featured open-loop control system specifically designed for the sheet metal processing industry. Easy to install, easy to debug, excellent performance, complete solutions, is currently a high market share of a fiber laser cutting control system. The control system has the following characteristics: Supports any combination of multi-level perforation, segmented or progressive. supports the communication control of most of the mainstream lasers on the market. Support flight cutting, leapfrog, compensation, cutter line, micro connection, pre-perforation, film cutting and other basic processes support capacitive seeking, photoelectric seeking, electric focusing, double switching table, automatic layout, circular tube cutting, power off memory, QR code, cutting line, maintenance and other advanced functions. Support cooling point, sharp Angle ring cutting, release Angle and other advanced processes support advance opening and gas flushing. Support lifting, retracting, fine cutting process support air movement obstacle avoidance, leapfrog intelligent judgment. Support simple scheduling, virtual multi-station, code map scanning and other automatic applications |
 |
 |
 |
 |
 |
 |
 |
Laser cutting machine
Professional mechanical design, novel appearance, a number of patented technology, high degree of processing refinement, fast speed, small slit, smooth section, easy operation, low energy consumption, suitable for large-scale continuous processing, competitive advantage of cutting.
